UML diagrams

Package diagram

AtLAST package

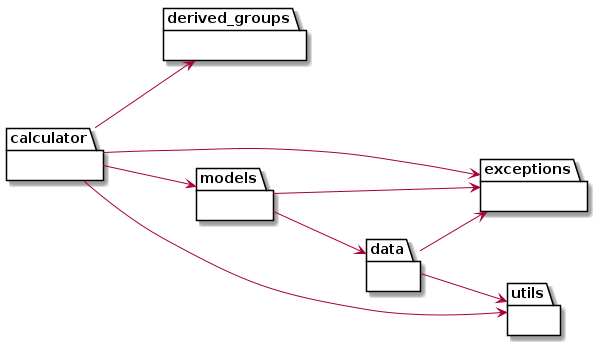

$@startuml atlast_sc_pacakge left to right direction package "calculator" as atlast_sc.calculator { } package "data" as atlast_sc.data { } package "derived_groups" as atlast_sc.derived_groups { } package "exceptions" as atlast_sc.exceptions { } package "models" as atlast_sc.models { } package "utils" as atlast_sc.utils { } atlast_sc.calculator --> atlast_sc.derived_groups atlast_sc.calculator --> atlast_sc.exceptions atlast_sc.calculator --> atlast_sc.models atlast_sc.calculator --> atlast_sc.utils atlast_sc.data --> atlast_sc.exceptions atlast_sc.data --> atlast_sc.utils atlast_sc.models --> atlast_sc.data atlast_sc.models --> atlast_sc.exceptions @enduml$

Class diagrams

Calculator

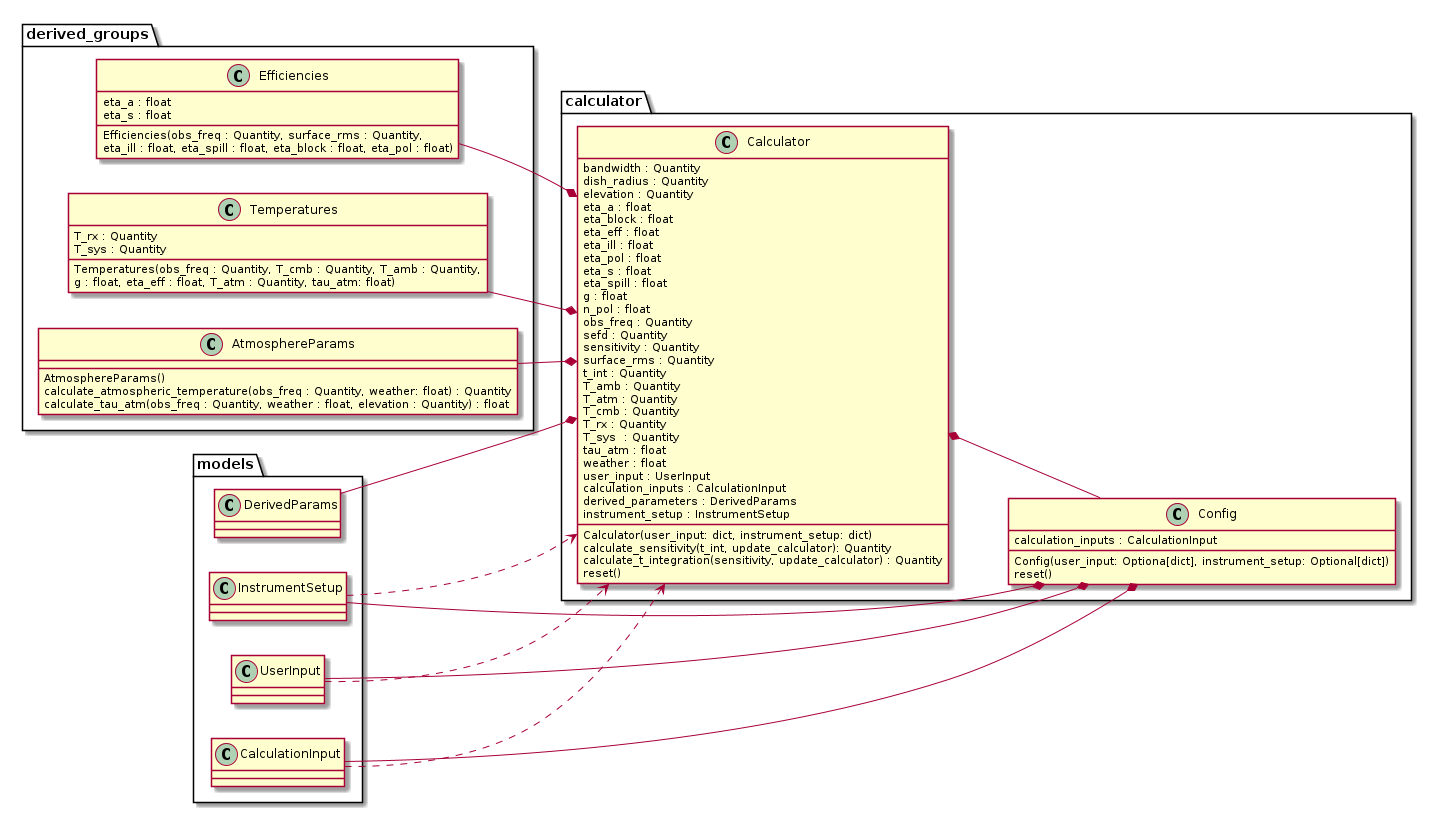

$@startuml calculator left to right direction class "AtmosphereParams" as derived_groups.AtmosphereParams { AtmosphereParams() calculate_atmospheric_temperature(obs_freq : Quantity, weather: float) : Quantity calculate_tau_atm(obs_freq : Quantity, weather : float, elevation : Quantity) : float } class "Calculator" as calculator.Calculator { bandwidth : Quantity dish_radius : Quantity elevation : Quantity eta_a : float eta_block : float eta_eff : float eta_ill : float eta_pol : float eta_s : float eta_spill : float g : float n_pol : float obs_freq : Quantity sefd : Quantity sensitivity : Quantity surface_rms : Quantity t_int : Quantity T_amb : Quantity T_atm : Quantity T_cmb : Quantity T_rx : Quantity T_sys : Quantity tau_atm : float weather : float user_input : UserInput calculation_inputs : CalculationInput derived_parameters : DerivedParams instrument_setup : InstrumentSetup Calculator(user_input: dict, instrument_setup: dict) calculate_sensitivity(t_int, update_calculator): Quantity calculate_t_integration(sensitivity, update_calculator) : Quantity reset() } class "Config" as calculator.Config { calculation_inputs : CalculationInput Config(user_input: Optiona[dict], instrument_setup: Optional[dict]) reset() } class "Efficiencies" as derived_groups.Efficiencies { eta_a : float eta_s : float Efficiencies(obs_freq : Quantity, surface_rms : Quantity, eta_ill : float, eta_spill : float, eta_block : float, eta_pol : float) } class "Temperatures" as derived_groups.Temperatures { T_rx : Quantity T_sys : Quantity Temperatures(obs_freq : Quantity, T_cmb : Quantity, T_amb : Quantity, g : float, eta_eff : float, T_atm : Quantity, tau_atm: float) } derived_groups.Efficiencies --* calculator.Calculator derived_groups.Temperatures --* calculator.Calculator derived_groups.AtmosphereParams --* calculator.Calculator models.CalculationInput --* calculator.Config models.InstrumentSetup --* calculator.Config models.UserInput --* calculator.Config calculator.Calculator *-- models.DerivedParams models.CalculationInput ..> calculator.Calculator models.InstrumentSetup ..> calculator.Calculator models.UserInput ..> calculator.Calculator calculator.Calculator *-- calculator.Config @enduml$

Data model

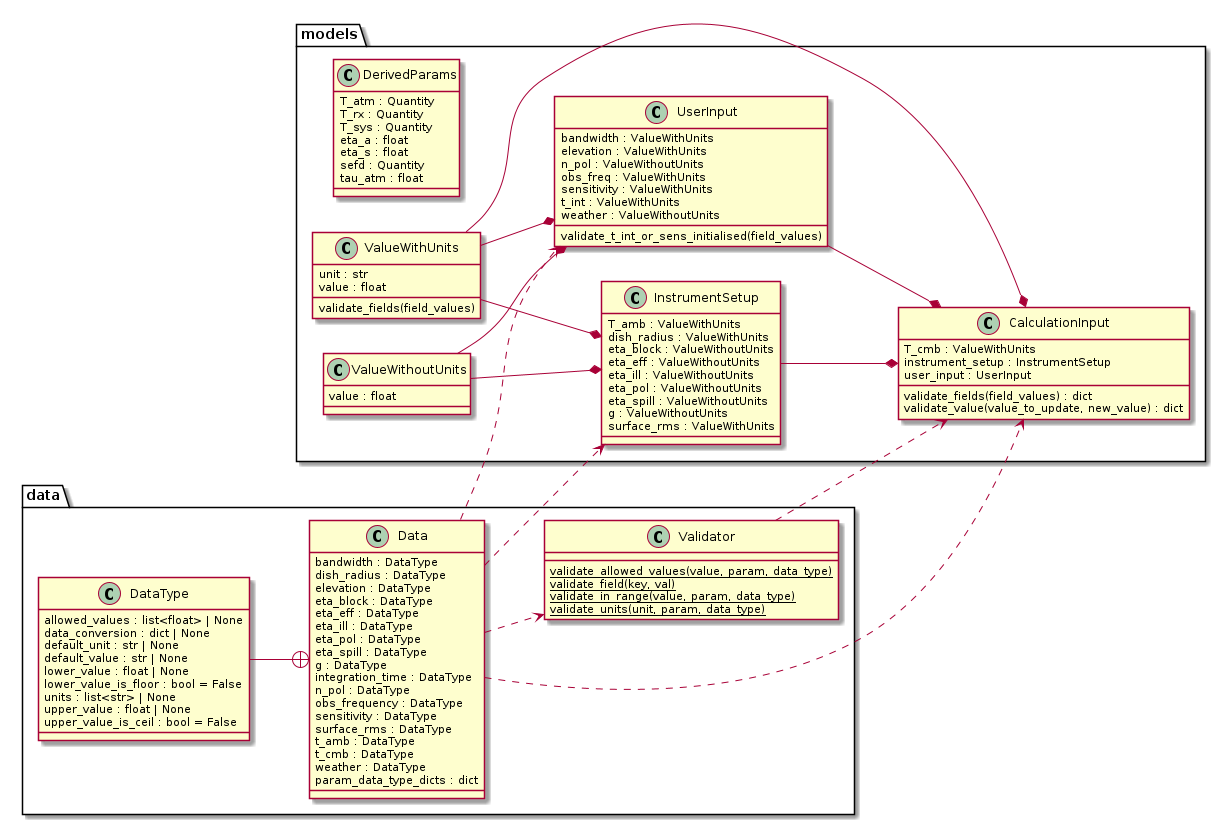

$@startuml data_model left to right direction class "CalculationInput" as models.CalculationInput { T_cmb : ValueWithUnits instrument_setup : InstrumentSetup user_input : UserInput validate_fields(field_values) : dict validate_value(value_to_update, new_value) : dict } class "Data" as data.Data { bandwidth : DataType dish_radius : DataType elevation : DataType eta_block : DataType eta_eff : DataType eta_ill : DataType eta_pol : DataType eta_spill : DataType g : DataType integration_time : DataType n_pol : DataType obs_frequency : DataType sensitivity : DataType surface_rms : DataType t_amb : DataType t_cmb : DataType weather : DataType param_data_type_dicts : dict } class "DataType" as data.DataType { allowed_values : list<float> | None data_conversion : dict | None default_unit : str | None default_value : str | None lower_value : float | None lower_value_is_floor : bool = False units : list<str> | None upper_value : float | None upper_value_is_ceil : bool = False } class "DerivedParams" as models.DerivedParams { T_atm : Quantity T_rx : Quantity T_sys : Quantity eta_a : float eta_s : float sefd : Quantity tau_atm : float } class "InstrumentSetup" as models.InstrumentSetup { T_amb : ValueWithUnits dish_radius : ValueWithUnits eta_block : ValueWithoutUnits eta_eff : ValueWithoutUnits eta_ill : ValueWithoutUnits eta_pol : ValueWithoutUnits eta_spill : ValueWithoutUnits g : ValueWithoutUnits surface_rms : ValueWithUnits } class "UserInput" as models.UserInput { bandwidth : ValueWithUnits elevation : ValueWithUnits n_pol : ValueWithoutUnits obs_freq : ValueWithUnits sensitivity : ValueWithUnits t_int : ValueWithUnits weather : ValueWithoutUnits validate_t_int_or_sens_initialised(field_values) } class "Validator" as data.Validator { {static} validate_allowed_values(value, param, data_type) {static} validate_field(key, val) {static} validate_in_range(value, param, data_type) {static} validate_units(unit, param, data_type) } class "ValueWithUnits" as models.ValueWithUnits { unit : str value : float validate_fields(field_values) } class "ValueWithoutUnits" as models.ValueWithoutUnits { value : float } models.InstrumentSetup --* models.CalculationInput models.UserInput --* models.CalculationInput data.Validator ..> models.CalculationInput data.DataType --+ data.Data data.Data ..> data.Validator data.Data ..> models.CalculationInput data.Data ..> models.UserInput data.Data ..> models.InstrumentSetup models.ValueWithUnits --* models.CalculationInput models.ValueWithUnits --* models.UserInput models.ValueWithUnits --* models.InstrumentSetup models.ValueWithoutUnits --* models.UserInput models.ValueWithoutUnits --* models.InstrumentSetup @enduml$

Exceptions

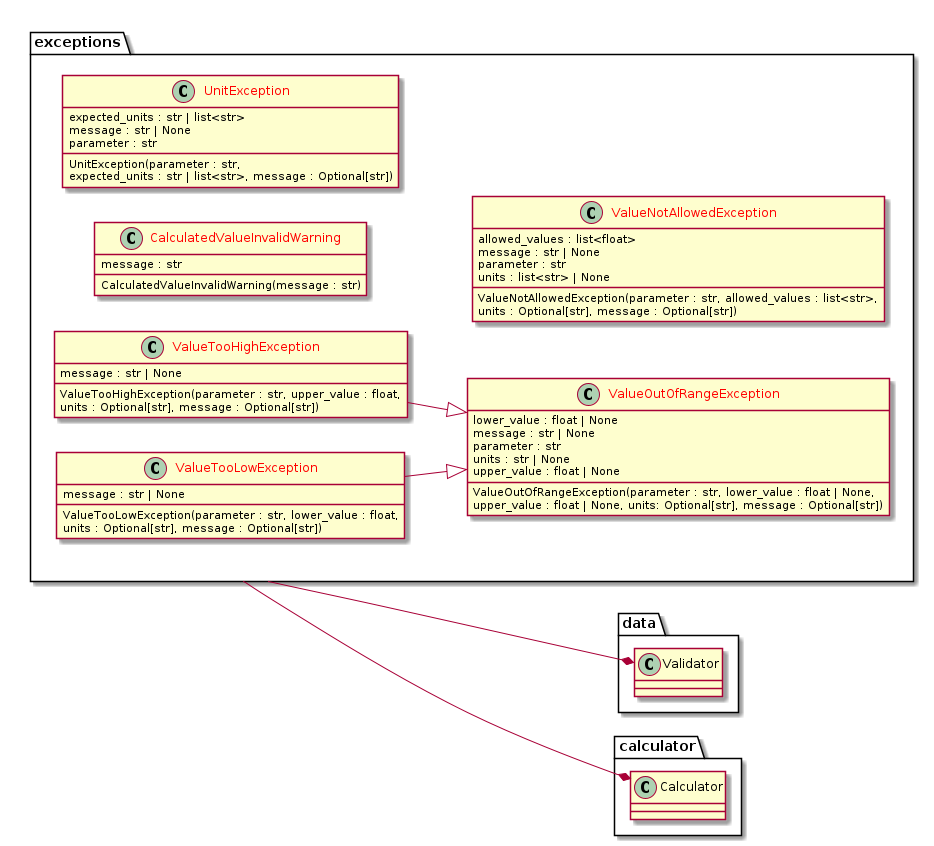

$@startuml exceptions left to right direction class "<color:red>CalculatedValueInvalidWarning</color>" as exceptions.CalculatedValueInvalidWarning { message : str CalculatedValueInvalidWarning(message : str) } class "<color:red>UnitException</color>" as exceptions.UnitException { expected_units : str | list<str> message : str | None parameter : str UnitException(parameter : str, expected_units : str | list<str>, message : Optional[str]) } class "<color:red>ValueNotAllowedException</color>" as exceptions.ValueNotAllowedException { allowed_values : list<float> message : str | None parameter : str units : list<str> | None ValueNotAllowedException(parameter : str, allowed_values : list<str>, units : Optional[str], message : Optional[str]) } class "<color:red>ValueOutOfRangeException</color>" as exceptions.ValueOutOfRangeException { lower_value : float | None message : str | None parameter : str units : str | None upper_value : float | None ValueOutOfRangeException(parameter : str, lower_value : float | None, upper_value : float | None, units: Optional[str], message : Optional[str]) } class "<color:red>ValueTooHighException</color>" as exceptions.ValueTooHighException { message : str | None ValueTooHighException(parameter : str, upper_value : float, units : Optional[str], message : Optional[str]) } class "<color:red>ValueTooLowException</color>" as exceptions.ValueTooLowException { message : str | None ValueTooLowException(parameter : str, lower_value : float, units : Optional[str], message : Optional[str]) } exceptions.ValueTooHighException --|> exceptions.ValueOutOfRangeException exceptions.ValueTooLowException --|> exceptions.ValueOutOfRangeException exceptions --* data.Validator exceptions --* calculator.Calculator @enduml$

Utilities

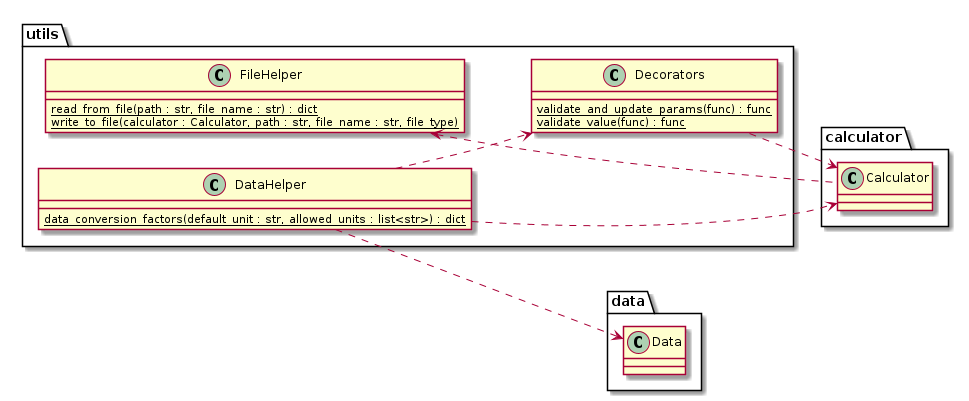

$@startuml utils left to right direction class "FileHelper" as utils.FileHelper { {static} read_from_file(path : str, file_name : str) : dict {static} write_to_file(calculator : Calculator, path : str, file_name : str, file_type) } class "DataHelper" as utils.DataHelper { {static} data_conversion_factors(default_unit : str, allowed_units : list<str>) : dict } class "Decorators" as utils.Decorators { {static} validate_and_update_params(func) : func {static} validate_value(func) : func } utils.FileHelper <.. calculator.Calculator utils.Decorators ..> calculator.Calculator utils.DataHelper ..> calculator.Calculator utils.DataHelper ..> data.Data utils.DataHelper ..> utils.Decorators @enduml$
